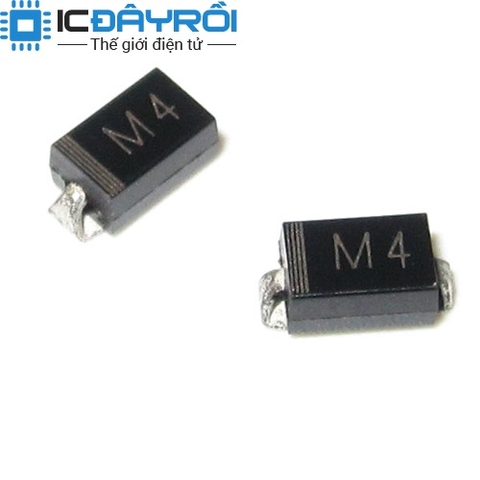

Diode 1N4004 M4 1A 400V
300₫
Còn hàng
Mô tả :
IN4004 (Marking M4) SMD
1A 400V Rectifier Diodes
DO-214AC(SMA) Package
Features
Diffused Junction
High Current Capability and Low Forward Voltage Drop
Surge Overload Rating to 30A Peak
Low Reverse Leakage Current
Absolute Maximum Ratings
(TA = 25°C unless otherwise noted)
Maximum Repetitive Reverse Voltage (VRRM) :400V
Average Rectified Forward Current IF(AV):...
IN4004 (Marking M4) SMD
- 1A 400V Rectifier Diodes
- DO-214AC(SMA) Package
Features
- Diffused Junction
- High Current Capability and Low Forward Voltage Drop
- Surge Overload Rating to 30A Peak
- Low Reverse Leakage Current
Absolute Maximum Ratings
(TA = 25°C unless otherwise noted)
- Maximum Repetitive Reverse Voltage (VRRM) :400V
- Average Rectified Forward Current IF(AV): 1.0 A
- Non-repetitive Peak Forward Surge Current IFSM: 30A
- Storage Temperature Range Tstg: 150oC
- Operating Junction Temperature TJ : -65oC to +175oC
