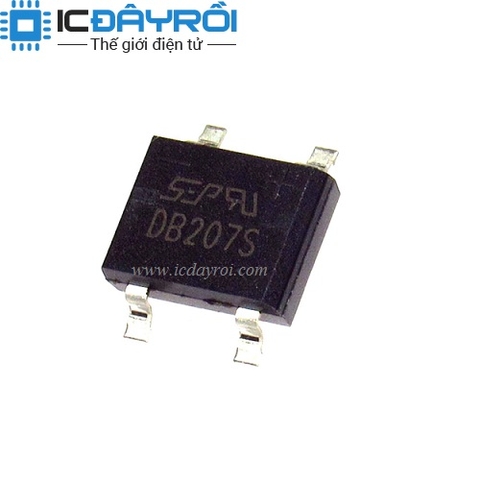

Diode DB207S 2A/1000V SOP4
1.500₫
Còn hàng
Mô tả :
Attribute
Value
Bridge Type
Single Phase
Peak Average Forward Current
2A
Peak Reverse Repetitive Voltage
1000V
Mounting Type
Surface Mount
Package Type
DBS
Pin Count
4
Diode Technology
Silicon Junction
Diode Type
Silicon Junction
Configuration
Single
Peak Non-Repetitive Forward Surge Current
60A
Maximum Operating Temperature
+150 °C
Minimum Operating Temperature
-55 °C
Peak Forward Voltage
1.1V
Peak Reverse Current
500µA
Length
8.8mm
Junction Capacitance
25pF
Width
6.5mm
Height
3.4mm
Dimensions
8.8 x...
| Attribute | Value |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Surface Mount |
| Package Type | DBS |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Diode Type | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 60A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 8.8mm |
| Junction Capacitance | 25pF |
| Width | 6.5mm |
| Height | 3.4mm |
| Dimensions | 8.8 x 6.5 x 3.4mm |
