Diode Schottky BAT54S 200mA 30V
800₫
Còn hàng
Mô tả :
hàng loại 1

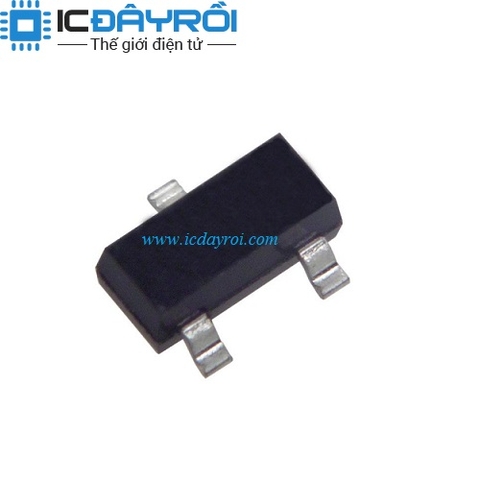

BAT54S SOT23
| Diode Type | Schottky | |
|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) (per Diode) | 200mA | |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 5ns | |
| Current - Reverse Leakage @ Vr | 2µA @ 25V | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23-3 (TO-236) | |
| Base Part Number | BAT54S |
