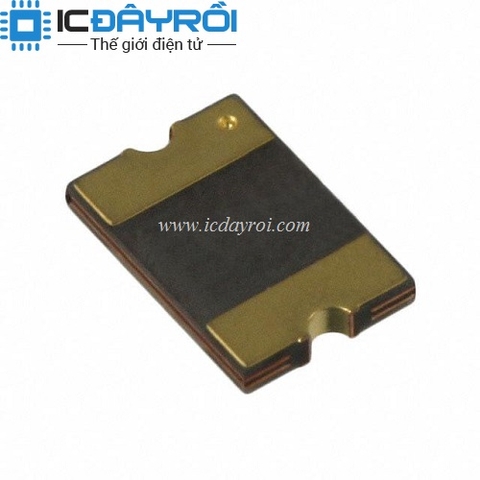

Cầu chì NSMF035-2 6V 350MA 1206
1.100₫
Còn hàng
Mô tả :
NSMF035-2 1206 0.35A 6V 350MA
Voltage - Max
6V
Current - Max
100A
Current - Hold (Ih) (Max)
350mA
Current - Trip (It)
750mA
Time to Trip
100ms
Resistance - Initial (Ri) (Min)
300 mOhms
Resistance - Post Trip (R1) (Max)
1.2 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
AEC-Q200
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric), Concave
Size /...
NSMF035-2 1206 0.35A 6V 350MA
| Voltage - Max | 6V | |
|---|---|---|
| Current - Max | 100A | |
| Current - Hold (Ih) (Max) | 350mA | |
| Current - Trip (It) | 750mA | |
| Time to Trip | 100ms | |
| Resistance - Initial (Ri) (Min) | 300 mOhms | |
| Resistance - Post Trip (R1) (Max) | 1.2 Ohms | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | AEC-Q200 | |
| Mounting Type | Surface Mount | |
| Package / Case | 1206 (3216 Metric), Concave | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.033" (0.85mm) |
