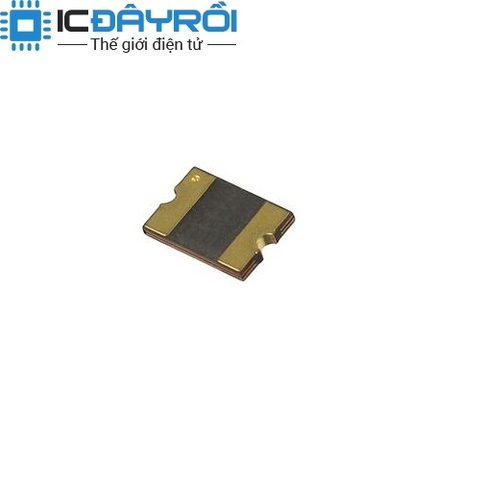

Cầu Chì MSMF110/24X-2 1.1A/24V
2.000₫
Còn hàng
Mô tả :
Cầu Chì MSMF110/24X-2 1.1A/24V
Manufacturer
Bourns Inc.
Series
Multifuse®, MF-MSMF
Packaging
Cut Tape (CT)
Part Status
Active
Type
Polymeric
Voltage - Max
24V
Current - Max
20A
Current - Hold (Ih) (Max)
1.1A
Current - Trip (It)
2.2A
Time to Trip
500ms
Resistance - Initial (Ri) (Min)
60 mOhms
Resistance - Post Trip (R1) (Max)
180 mOhms
Operating Temperature
-40°C ~ 85°C
Ratings
AEC-Q200
Mounting Type
Surface Mount
Package / Case
1812...
Cầu Chì MSMF110/24X-2 1.1A/24V
| Manufacturer | Bourns Inc. | |
|---|---|---|
| Series | Multifuse®, MF-MSMF | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | Polymeric | |
| Voltage - Max | 24V | |
| Current - Max | 20A | |
| Current - Hold (Ih) (Max) | 1.1A | |
| Current - Trip (It) | 2.2A | |
| Time to Trip | 500ms | |
| Resistance - Initial (Ri) (Min) | 60 mOhms | |
| Resistance - Post Trip (R1) (Max) | 180 mOhms | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | AEC-Q200 | |
| Mounting Type | Surface Mount | |
| Package / Case | 1812 (4532 Metric), Concave | |
| Size / Dimension | 0.181" L x 0.128" W (4.60mm x 3.24mm) |
