Cầu Chì MF-MSMF150/24X-2
2.500₫
Hết hàng
Mô tả :

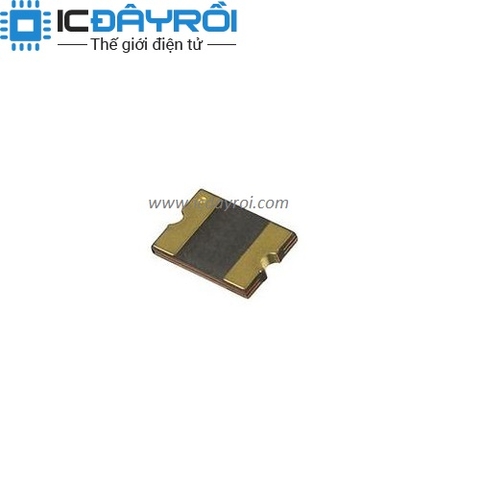

Cầu Chì Tự Phục Hồi 1.5A 24V SMD1812 MF-MSMF150/24X-2
Voltage - Max
24V
Current - Max
20A
Current - Hold (Ih) (Max)
1.5A
Current - Trip (It)
3A
Time to Trip
1.5s
Resistance - Initial (Ri) (Min)
30 mOhms
Resistance - Post Trip (R1) (Max)
120 mOhms
Operating Temperature
-40°C ~ 85°C
Ratings
AEC-Q200
Mounting...
Cầu Chì Tự Phục Hồi 1.5A 24V SMD1812 MF-MSMF150/24X-2
| Voltage - Max | 24V | |
|---|---|---|
| Current - Max | 20A | |
| Current - Hold (Ih) (Max) | 1.5A | |
| Current - Trip (It) | 3A | |
| Time to Trip | 1.5s | |
| Resistance - Initial (Ri) (Min) | 30 mOhms | |
| Resistance - Post Trip (R1) (Max) | 120 mOhms | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | AEC-Q200 | |
| Mounting Type | Surface Mount | |
| Package / Case | 1812 (4532 Metric), Concave | |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.033" (0.85mm) | |
| Lead Spacing | - | |
| Approvals | cURus, TUV |
