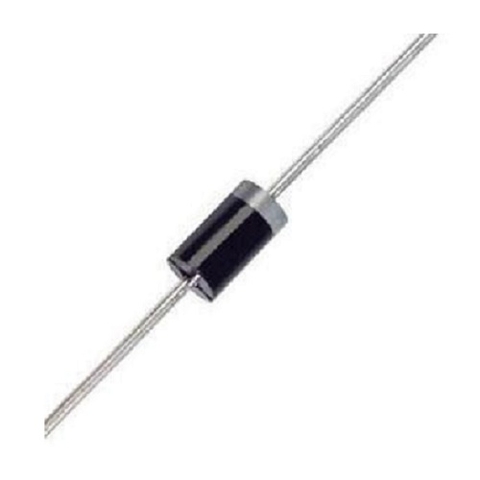

Diode 1N4007 1A 1000V DIP


Còn hàng

1N4007 General Purpose Rectifiers  DataSheet

  • 1A 1000V Rectifier Diodes
  • DO-41 Plastic Package


  • Diffused Junction
  • High Current Capability and Low Forward Voltage Drop
  • Surge Overload Rating to 30A Peak
  • Low Reverse Leakage Current

Absolute Maximum Ratings

 (TA = 25°C unless otherwise noted)

  • Maximum Repetitive Reverse Voltage (VRRM) :1000V
  • Average Rectified Forward Current IF(AV): 1.0 A
  • Non-repetitive Peak Forward Surge Current IFSM: 30A
  • Storage Temperature Range Tstg: 150oC
  • Operating Junction Temperature TJ : -65oC to +175oC
