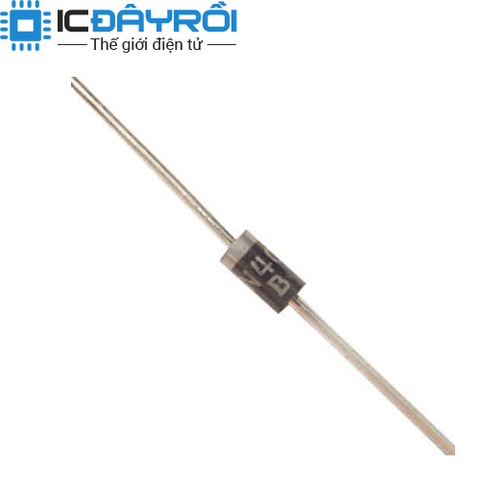

Diode UF4007 1A1000V
400₫
Còn hàng
Mô tả :
Diode Standard 1000V 1A Through Hole DO-204AL (DO-41)
Manufacturer
ON Semiconductor
Series
-
Packaging
Cut Tape (CT)
Part Status
Active
Diode Type
Standard
Voltage - DC Reverse (Vr) (Max)
1000V
Current - Average Rectified (Io)
1A
Voltage - Forward (Vf) (Max) @ If
1.7V @ 1A
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)
75ns
Current -...
Diode Standard 1000V 1A Through Hole DO-204AL (DO-41)
| Manufacturer | ON Semiconductor | |
|---|---|---|
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1000V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 75ns | |
| Current - Reverse Leakage @ Vr | 10µA @ 1000V | |
| Capacitance @ Vr, F | 17pF @ 4V, 1MHz | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Supplier Device Package | DO-204AL (DO-41) | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Base Part Number | UF4007 |
