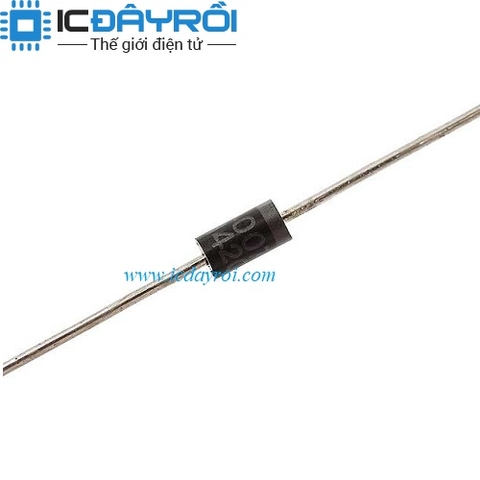

Diode 1N5817 IN5817 DO-41 1A 20V
400₫
Còn hàng
Mô tả :
Diode Type
Schottky
Voltage - DC Reverse (Vr) (Max)
20V
Current - Average Rectified (Io)
1A
Voltage - Forward (Vf) (Max) @ If
450mV @ 1A
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr
500µA @ 20V
Capacitance @ Vr, F
110pF @ 4V, 1MHz
Mounting Type
Through Hole
Package...
| Diode Type | Schottky | |
|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 450mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Current - Reverse Leakage @ Vr | 500µA @ 20V | |
| Capacitance @ Vr, F | 110pF @ 4V, 1MHz | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Supplier Device Package | DO-204AL (DO-41) | |
| Operating Temperature - Junction | -65°C ~ 125°C | |
| Base Part Number | 1N5817 |
