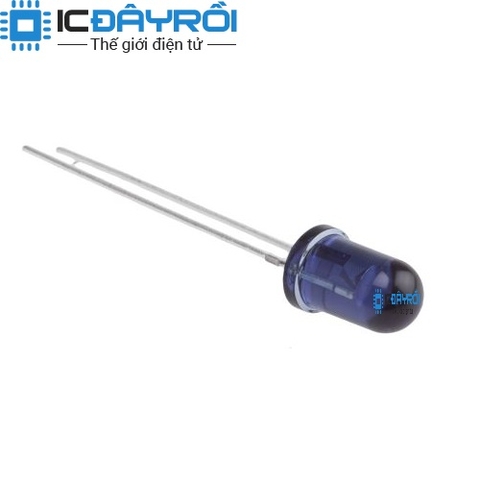

TSAL6200

3.000₫

Còn hàng

TSAL6200 High Power Infrared Emitting Diode, 940 nm  DataSheet


 DESCRIPTION

TSAL6200 is an infrared, 940 nm emitting diode in GaAlAs/GaAs technology with high radiant power molded in a blue-gray plastic package.

 FEATURES
  • Package type: leaded
  • Package form: T-1¾
  • Dimensions (in mm): Ø 5
  • Peak wavelength: λp = 940 nm
  • High reliability
  • High radiant power
  • High radiant intensity
  • Angle of half intensity: ϕ = ± 17°
  • Low forward voltage
  • Suitable for high pulse current operation
  • Good spectral matching with Si photodetectors
 APPLICATIONS
  • Infrared remote control units with high power requirements
  • Free air transmission systems
  • Infrared source for optical counters and card readers

 SPECIFICATIONS
Family Infrared Emitters
Wavelength 940nm
Viewing Angle 34°
Radiant Intensity (Ie) Min @ If 40mW/sr @ 100mA
Current - DC Forward (If) 100mA
Voltage - Forward (Vf) Typ 1.35V
Fall Time 800 ns
Lens Shape Circular
Operating Voltage 1.6 V
Power Rating 210 mW
Rise Time 800 ns
Operating Temperature - 55 °C ~ + 100 °C
Orientation Top View
Mounting Type Through Hole
Package / Case Radial, 5mm Dia (T 1 3/4)
Packaging Bulk
Factory Pack Quantity 4000
Viewing Angle 17 deg
   -
