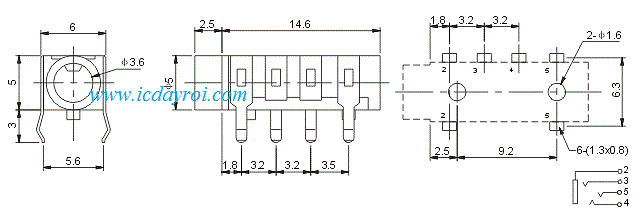

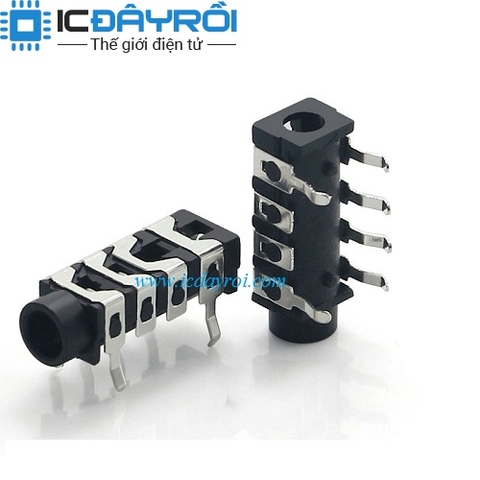

PJ-313B audio jack 3.5mm

1.500₫

Còn hàng



PJ-313B audio jack 3.5mm

Specifications

  • ROHS Approval
  • Jack diameter: 3.5mm
  • Material Housing: thermoplastic
  • Contacts:copper alloy covered with plating

3.5mm Audio jack stereo phone jack  PJ-313D

  • Temperature: -30~70°
  • Rated Load: Dc 30V 0.5A
  • Contact Resistance: ≤0.03W
  • Insulation Resistance: ≥100MW
  • Withstand Voltage: AC 500V(500Hz)/min
  • Actuating Force: 3 ~ 20N
  • Life: 5000
