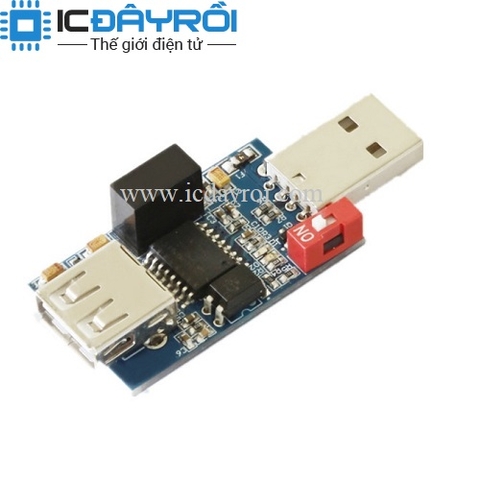

Mạch chuyển đổi USB-USB có cách ly ADUM3160

169.000₫

Còn hàng

Application Range:
1. Work environment with strong electricity and strong interference
Some circuits contain strong electricity and strong interference (such as high-voltage electricity, frequency converters, motor drives, etc.). When it is connected to a computer, it must be isolated to ensure the safety of the computer and safety.
2. Noise sensitive areas
The computer is a big source of noise. In the noise sensitive area, we can enter tiЕA through this device USBIa. HIFI sound system.
3. USB debugging device
4. Various industrial USB devices
5.Other common USB peripherals
Mouse, keyboard, USB sound card, USB, printer, digital camera, USB hub (HUB), USB camera.
6. Equipment
Some devices are connected to the computer through the USB interface. During data collection or treatment of the human body, direct electrical contact with the human body is required, and high voltages that may be conducted from the computer to the human body through the device and the interface line should be avoided. The electrical isolation of the interface circuit becomes one of the important protective measures.
Specification:

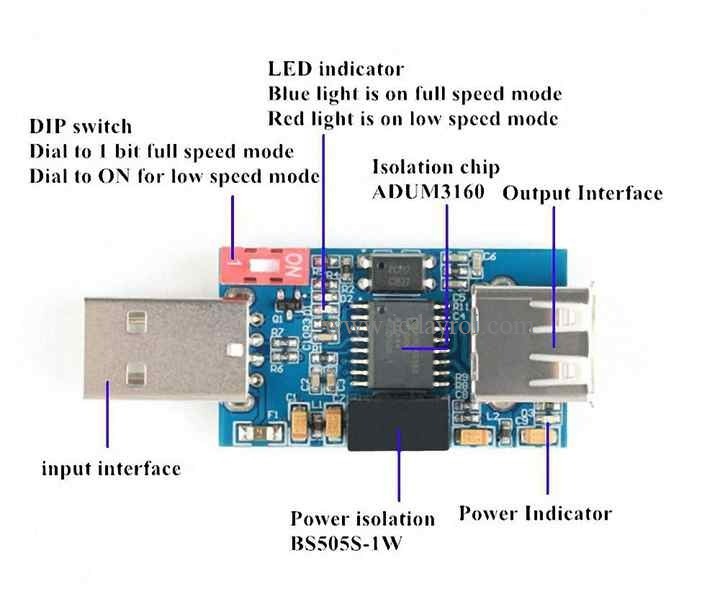

Item Type: USB Isolator Module ADUM3160
Isolation Voltage: 2500V
Power Supply: Taken from the USB port of the host computer
Power Module Isolation Voltage: 1500V
Output power B0505S power is 1W
Operating Environment: -40 to 85
