Mạch chuyển đổi USB Type C To TTL UART CH340N

30.000₫

Còn hàng

About this item

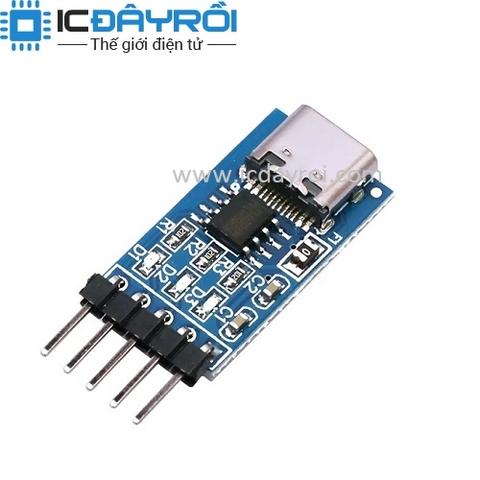

    This product is a TypeC to TTL serial port module that uses a CH340N USB bus adapter chip

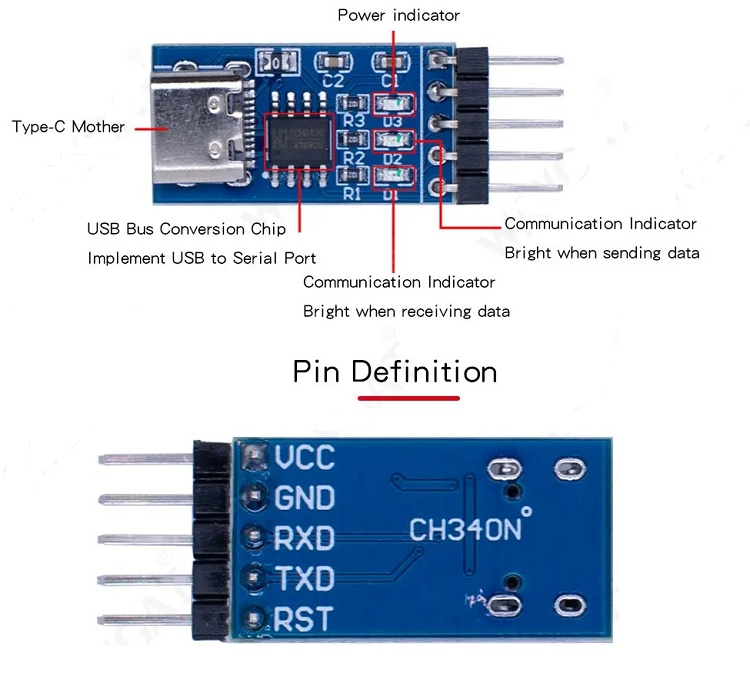

    There are three indicator lights on the board, one for power, and the other two for communication.
    Because there is no serial port on our current computer, we generally use a USB to serial port module for only one purpose, to map the computer's USB port to a serial port
    Before use, please confirm whether the TYPE-C cable has data transmission function.
    The module directly outputs 5V voltage, but it can also be connected to the 3.3V pin of other devices for communication. For example, other CH340G serial port modules can be connected to send and receive data

Description:

  • - Chip : CH340N
  • - Working voltage: 5V
  • - Working temperature: -40°C~85°C
  • - LED: 3 indicator LEDs
