HR202L
8.000₫
Còn hàng
Mô tả :

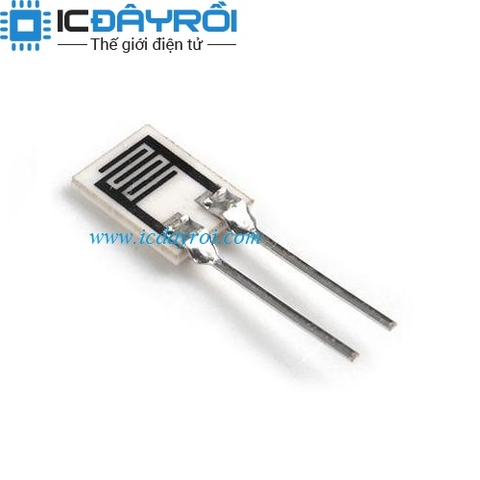

HR202L-Cảm biến độ ẩm Điện trở
R202L-B Humidity Resistance Sensor
Parameters: (at 1kHz) Unit: OhmOperating range: 20 ... 95% RH 0 ... 60 °
Supply voltage: 1.5V AC (Max sine wave)
Operating frequency: 500Hz ... 2kHz
Rated Power 0.2mW: (Max sine wave)
value: (at25 ° 1kHz 1V AC 60% RH sine wave) 31.0kω
Impedance range: (at25 ° 1kHz 1V AC 60% RH sine wave) 19.8 ... 50.2kω
Humidity measuring accuracy: ± 5% RH
