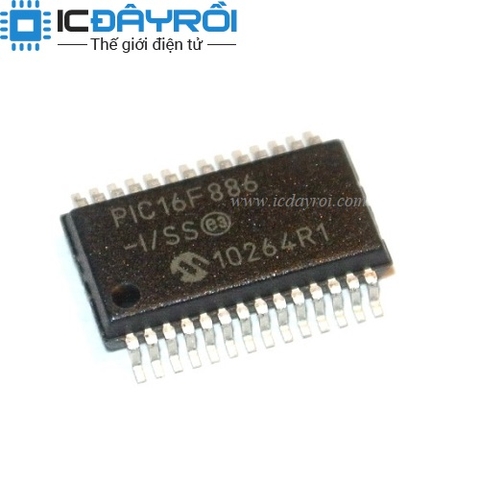

PIC16F886-I/SS

45.000₫

Còn hàng

The PIC16F886-I/SS is a 8-bit CMOS Flash-based Microcontroller. The PIC16F886 features 256 bytes of EEPROM data memory, self programming, an ICD, 2 comparators, 11 channels of 10-bit Analogue-to-digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). The PIC16F886 devices have two timers that offer necessary delays on power-up. One is the Oscillator Start-up Timer (OST), intended to keep the chip in reset until the crystal oscillator is stable. The other is the Power-up Timer (PWRT), which provides a fixed delay of 64ms (nominal) on power-up only, designed to keep the part in reset while the power supply stabilizes.

Specifications:

  • A/D Channels Available: 11
  • Clock Frequency Max: 20 MHz
  • Core: PIC
  • Data Bus Width: 8 bit
  • Height: 1.75 mm
  • Interface: EUSART, MSSP
  • Length: 10.2 mm
  • Mounting Style: SMD/SMT
  • Number of I/O Lines: 25
  • Number of Timers: 3
  • Number of bits in ADC: 10 bit
  • On-Chip ADC: Yes
  • Operating Supply Voltage: 2 V to 5.5 V
  • Operating Temperature Range: - 40 C to + 125 C
  • Package / Case: SSOP-28
  • Packaging Type: Tube
  • Processor Series: PIC16
  • Program Memory Size: 14 Kb
  • Program Memory Type: Flash
  • RAM Size: 368 B
  • Supply Voltage - Max: 5.5 V
  • Supply Voltage - Min: 2 V
  • Width: 5.3 mm
  • RoHS: Yes
