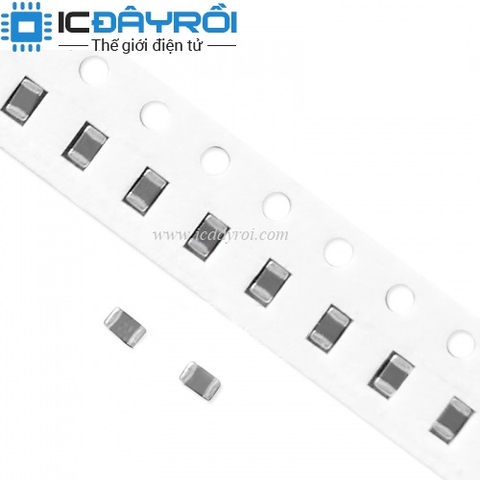

Cuộn cảm 8.2uH 0805 (gói 5 con)
2.000₫
Mô tả :
giá 2.000 đ/ 5 con
MECHANICAL SPECIFICATIONS
Solderability: 90 % coverage after 5 s dip in 235 °C solder
following 60 s preheat at 120 °C to 150 °C and type R flux dip
Resistance to Solder Heat: 10 s in 260 °C solder, after
preheat and flux per above
Termination: 100 % Sn
Terminal Strength: 0.6 kg for 30 s
Beam Strength: 1.0 kg
FEATURES
• High reliability
• Surface mountable
• Magnetically self shielded
• Nickel barrier plating virtuallly eliminates silver
migration
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21
definition
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: - 55 °C to + 125 °C
Thermal Shock: - 40 °C to + 85 °C
Humidity: 90 % RH at 40 °C, 1000 h at full rated current
Load Life: 85 °C for 1000 h at full rated currenta
