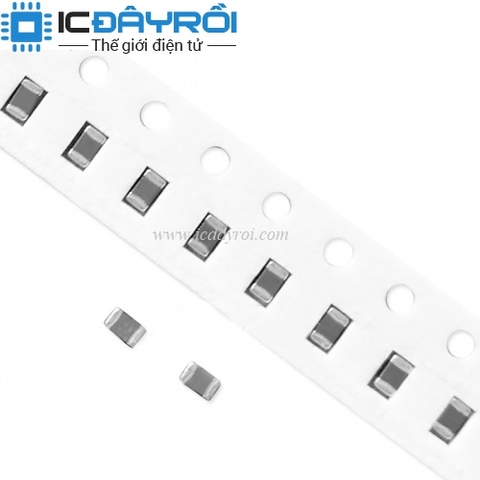

Cuộn cảm 220nH 0805 (gói 5 con)

2.000₫

Còn hàng

MECHANICAL SPECIFICATIONS

Solderability: 90 % coverage after 5 s dip in 235 °C solder

following 60 s preheat at 120 °C to 150 °C and type R flux dip

Resistance to Solder Heat: 10 s in 260 °C solder, after

preheat and flux per above

Termination: 100 % Sn

Terminal Strength: 0.6 kg for 30 s

Beam Strength: 1.0 kg

FEATURES

 • High reliability

• Surface mountable

• Magnetically self shielded

• Nickel barrier plating virtuallly eliminates silver

migration

• Compliant to RoHS Directive 2002/95/EC

• Halogen-free according to IEC 61249-2-21

definition

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature: - 55 °C to + 125 °C

Thermal Shock: - 40 °C to + 85 °C

Humidity: 90 % RH at 40 °C, 1000 h at full rated current

Load Life: 85 °C for 1000 h at full rated currenta
