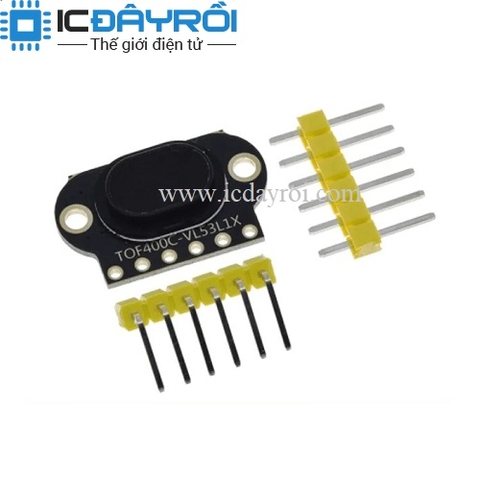

Cảm biến đo khoảng cách bằng laser TOF400C 400cm
159.000₫
Mô tả :
Module with ToF distance sensor based on the VL53L1X system. Interacts the SPAD (Single Photon Avalanche Diodes) matrix and FlightSense ™ technology, which allows you to measure the absolute distance regardless of the color and surface of the detected object. Thanks to the application of the IR transmitter emitting light with a wavelength of 940 nm and a set of filters, it offers a range of up to 400 cm with good resistance to interference from ambient light. The sensor has a dead zone ranging from 0 to 4 cm and a detection angle of 27°. The module also offers the ability to detect 1D gestures. VL53L1 communicates via the I2C interface, and the user has a friendly and easy-to-use API (Application Programming Interface) available in C language. It can be used in applications for detecting the presence of objects and obstacles, both in industrial robots and mobile structures.
Description
- - Range: 4 to 400 cm
- - Dead zone: 0 to 4 cm

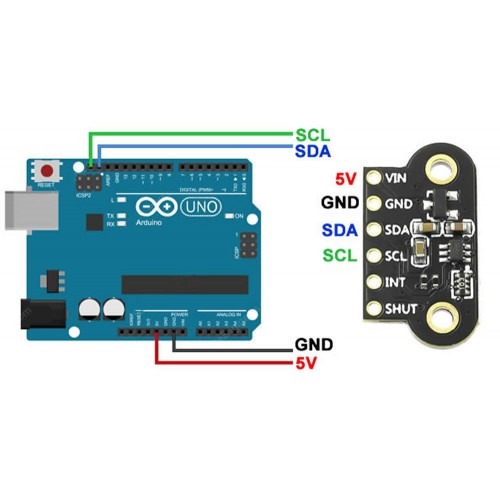

- - Interface: I2C
- - Programmable I2C address (default 0x52)
- - Viewing Angle (FOV): 27°
- - Ranging frequency: 50 Hz
- - 1D gesture detection capability
- - Protective cover
- - Two M2 mounting holes
- - Power supply: 3 to 5 V
- - Current consumption: 40 mA
- - Working temperature: -20 to 70°C
