SYN470R
4.000₫
Còn hàng
Mô tả :

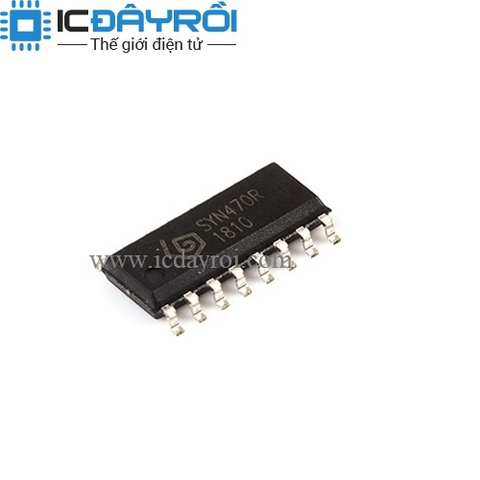

The SYN470R is a single chip ASK/OOK (ON-OFF Keyed) RF receiver IC. This device is a true
“antenna-in to data-out” monolithic device. All RF and IF tuning are accomplished automatically
within the IC which eliminates manual tuning and reduces production costs. The result is...
The SYN470R is a single chip ASK/OOK (ON-OFF Keyed) RF receiver IC. This device is a true
“antenna-in to data-out” monolithic device. All RF and IF tuning are accomplished automatically
within the IC which eliminates manual tuning and reduces production costs. The result is a highly
reliable yet low cost solution.
Features
1. 300MHz to 440MHz frequency range
2. High receiver sensitivity: -106dBm (315MHz), -107dBm (433MHz)
3. Data-rate up to 10kbps (fixed-mode)
4. Low Power Consumption
5. 2.5mA fully operational (315MHz)
6. 0.9µA in shutdown
7. 250µA in polled operation (10:1 duty-cycle)
8. Wake-up output flag to enable decoders and microprocessors
9. Very low RF re-radiation at the antenna
10. Highly integrated with extremely low external part count
