Switch 8P DIP
3.000₫
Còn hàng
Mô tả :

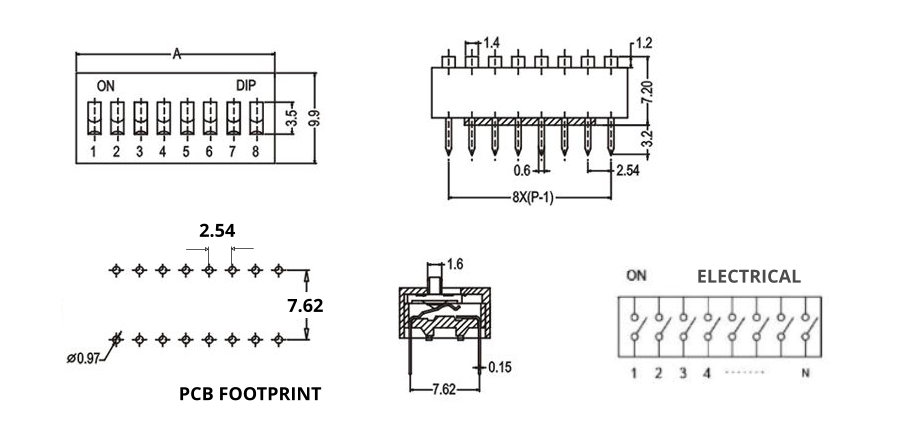

8 Positions Dip Switch, RED, 50Vdc @ 100mA
These DIP switch has 8 individual switch positions. The pins have 2.54mm spacing, fits great into a breadboard and works as general control switches when multiple switch or conditions are required.
- Max Current: 100mA
- Max Voltage: 24V
- Die electric Strength: 500V DC for 60s
- Contact Resistance: 50 mOhm
- Contacts: Gold Plated
- Mechanical Life: 2000 operations
