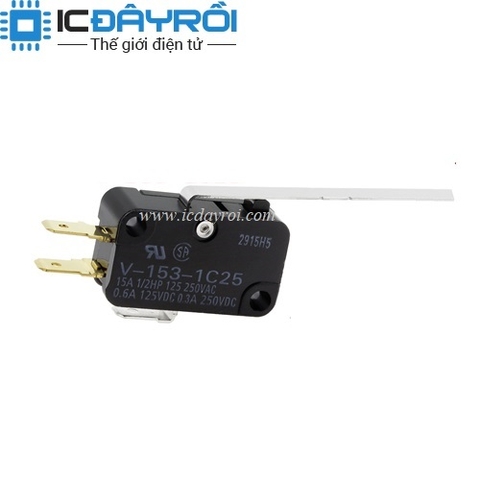

Công tắc hành trình Omron V-153-1C25
28.000₫
Còn hàng
Mô tả :
Công tắc hành trình Omron V-153-1C25
Manufacturer
Omron Electronics Inc-EMC Div
Series
V
Packaging
Bulk
Part Status
Active
Circuit
SPDT
Switch Function
On-Mom
Current Rating (Amps)
15A (AC), 600mA (DC)
Voltage Rating - AC
250V
Voltage Rating - DC
125V
Actuator Type
Lever, Straight
Mounting Type
Chassis Mount
Termination Style
Quick Connect - 0.187" (4.7mm)
Ingress Protection
IP40
Features
-
Operating Force
70gf
Release Force
6.118gf
Pretravel
0.354" (9.0mm)
Differential Travel
0.110" (2.8mm)
Overtravel
0.079" (2.0mm)
Operating Temperature
-25°C ~...
Công tắc hành trình Omron V-153-1C25
| Manufacturer | Omron Electronics Inc-EMC Div | |
|---|---|---|
| Series | V | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating (Amps) | 15A (AC), 600mA (DC) | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.187" (4.7mm) | |
| Ingress Protection | IP40 | |
| Features | - | |
| Operating Force | 70gf | |
| Release Force | 6.118gf | |
| Pretravel | 0.354" (9.0mm) | |
| Differential Travel | 0.110" (2.8mm) | |
| Overtravel | 0.079" (2.0mm) | |
| Operating Temperature | -25°C ~ 80°C | |
| Operating Position | 0.600" (15.2mm) |
