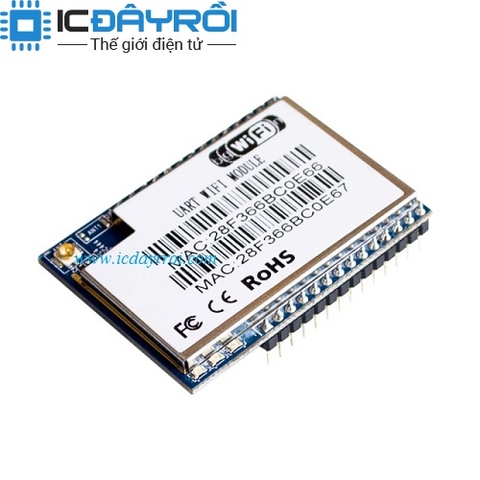

Module wifi UART HLK-RM04

285.000₫

Còn hàng

HI-LINK HLK-RM04 là module tích hợp UART – ETH – WIFI được phát triển bởi công ty Shenzhen Hi-Link Electronic. Bằng cách sử dụng module HLK-RM04, các thiết bị có chuẩn giao tiếp nối tiếp thông dụng cũng có thể truyền dữ liệu qua mạng internet

- Điện áp hoạt động: 5VDC

- Tương thích với chuẩn IEEE 802.11b/g/n

- Chế độ hoạt động: Wifi Client/AP/Router

- Hỗ trợ nhiều cơ chế bảo mật:

           + WEP64/WEP128/TKIP/AES

           + WEP/WPA-PSK/WPA2-PSK

- Hỗ trợ nhiều giao thức mạng:

           + PPPOE/TCP/UDP/DDDNS

            /DHCP/DNS/HTTP

- Hỗ trợ tập lệnh AT

- Hỗ trợ 2 phương pháp cấu hình: Serial/WEB

- Kích thước: 29mm*40mm*8.8mm

Network standard

wireless:IEEE 802.11n、IEEE 802.11g、IEEE 802.11b

wired:IEEE 802.3、IEEE 802.3u

Wireless transmission rate

11n: maximum up to 150Mbps
11g: maximum up to 54Mbps
11b: maximum up to 11Mbps

Tracks number

1-14

Frequency range

2.4-2.4835G

Emission power

12-15DBM

Interface

1个10/100Mbps LAN/WAN multiplex interface、interface

Antenna

Antenna type

Onboard antenna / External Antenna

Functional Parameters

WIFI work mode

Client/AP/Router

WDS Function

Support WDS wireless bridge connection

Wireless security

Wireless MAC address filtering

Wireless security function switch

64/128/152 bit WEP encryption

WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism

Network management

Remote Web management

Configuration file import and export

WEB software upgrade

Serial to Network

Maximum transmission rate

230400bps

TCP connection

Max connection number>20

UDP connection

Max connection number>20

Serial baud rate

50~230400bps

Other Parameters

Status indicator

Status indicator

Environmental standard

Operating temperature:-20-70℃

Operating humidity:10%-90%RH

Storage temperature:-40-80℃

Storage humidity:5%-90%RH

Additional properties

Frequency bandwidth optional:20MHz、40MHz ,Auto

   Mechanical Dimensions

HLK-RM04 Mechanical Dimensions is shown in the following picture:

3.Pin Interface
The Pin of this product as shown above is defined as follows

4.Electrical Characteristics
Exceeding these conditions will result in damage to the device



Parameter Min Max
Module supply voltage VCC 3.9V 5.5V
Module Voltage Output VO3.3 3.1V 3.5
Module Voltage Output VO1.8 1.65V 1.9
GPIO Voltage 3.1V 3.5V
Storage temperature -40ºC 95ºC

5.Typical Application Circuit
