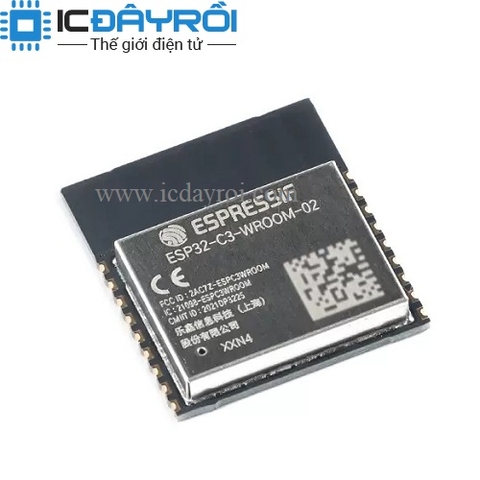

Mạch RF thu phát Wifi BLE ESP32-C3-WROOM-02-N4
70.000₫
Còn hàng
Mô tả :
Product Attribute
Attribute Value
Manufacturer:
Espressif
Product Category:
Multiprotocol Modules
RoHS:
Details
Frequency:
2.4 GHz
Output Power:
20.5 dBm
Interface Type:
GPIO, I2C, I2S, SPI, UART
Supply Voltage - Min:
3 V
Supply Voltage - Max:
3.6 V
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 85 C
Antenna Connector Type:
PCB
Dimensions:
18 mm x 20 mm x 3.2 mm
Protocol - Bluetooth,...
| Product Attribute | Attribute Value |
|---|---|
| Espressif | |
| Product Category: | Multiprotocol Modules |
| RoHS: | Details |
| 2.4 GHz | |
| 20.5 dBm | |
| GPIO, I2C, I2S, SPI, UART | |
| 3 V | |
| 3.6 V | |
| - 40 C | |
| + 85 C | |
| PCB | |
| 18 mm x 20 mm x 3.2 mm | |
| Bluetooth 5.0 | |
| WiFi | |
| Brand: | Espressif Systems |
| Data Rate: | 150 Mb/s |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 3 V to 3.6 V |
| Product Type: | Multiprotocol Modules |
| Protocol Supported: | 802.11 b/g/n |
| Subcategory: | Wireless & RF Modules |
