Kit ESP32 Bluetooth WIFI OLED 0.96inch V3
420.000₫
Còn hàng
Mô tả :
Thương hiệu: HelTec AutoMation

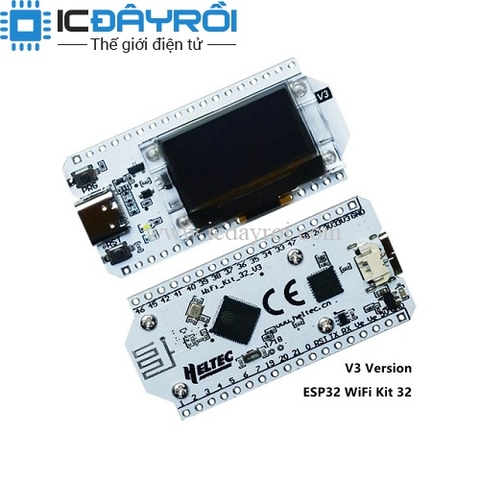

WiFi Kit 32 (V3) is a classic IoT development board. It’s a highly integrated product based on ESP32(including WiFi and BLE), Li-Po battery management system, 0.96” OLED are also included. It’s the best choice for smart cities, farms homes and IoT makers
Features:
- - 1. Microprocessor: ESP32-S3FN8 (Main frequency up to 240 MHz)

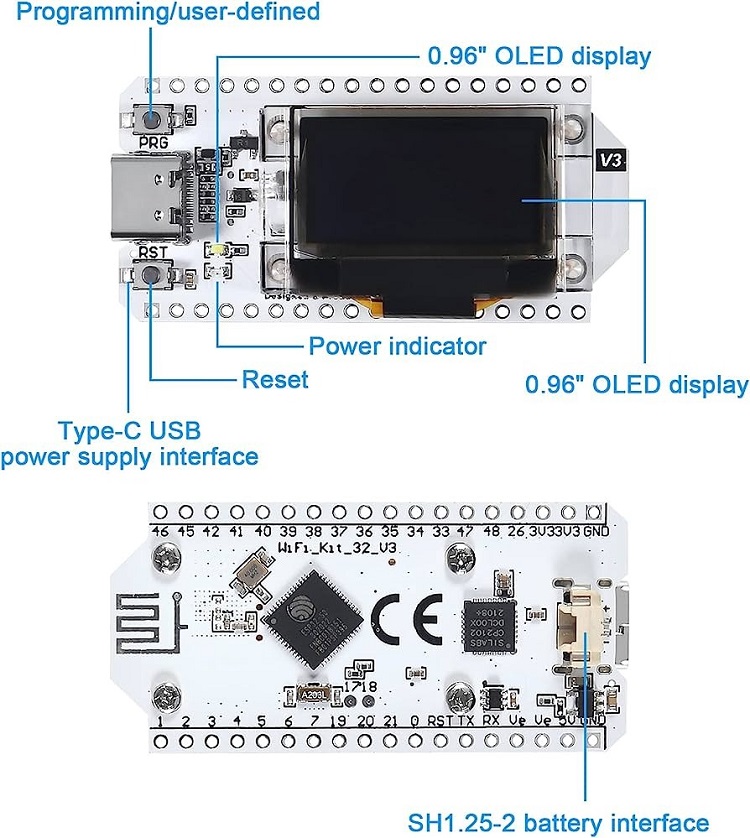

- - 2. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures
- - 3. Onboard SH1.25-2 battery interface, integrated lithium battery management system
- - 4. Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna
- - 5. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information
- - 6. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
- - 7. Support the Ar duino development environment
Parameter:
- - WiFi: 802.11 b/g/n, up to 150Mbps
- - Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh
- - Hardware Resource: 7*ADC1+2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI, etc.
- - Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

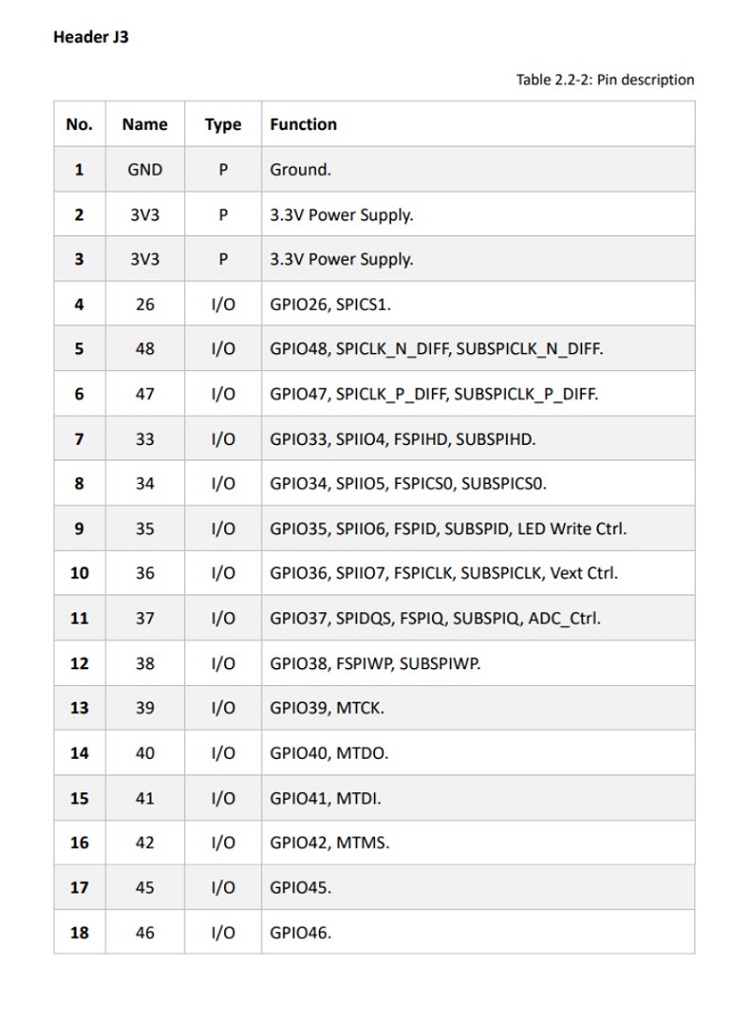

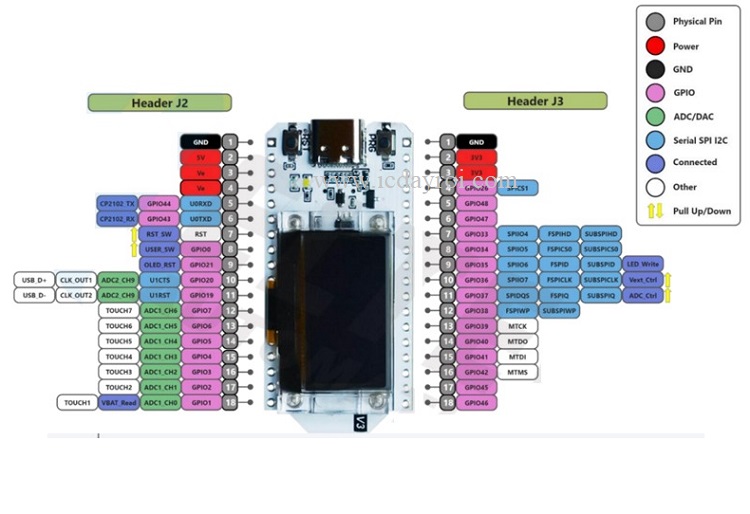

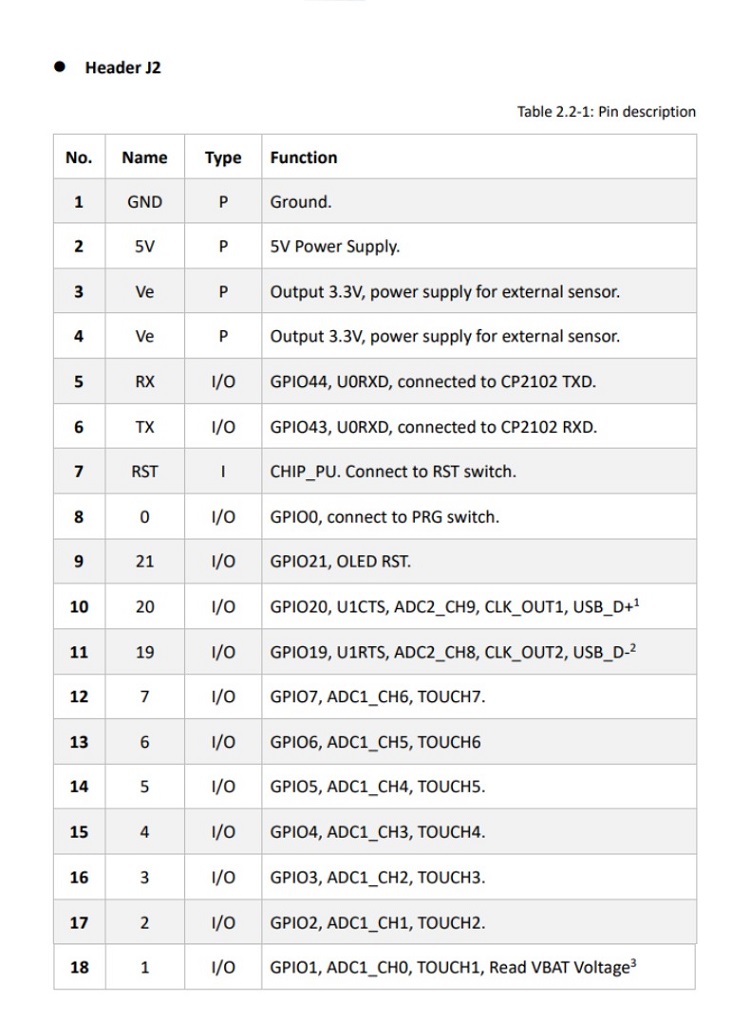

- - Interface: Type-C USB; 2*1.25 lithium battery interface; 2*18*2.54 Header Pin
- - Battery: 3.7V lithium battery power supply and charging
- - Power consumption: Deep sleep 10 uA
- - Operating temperature: -20~70℃

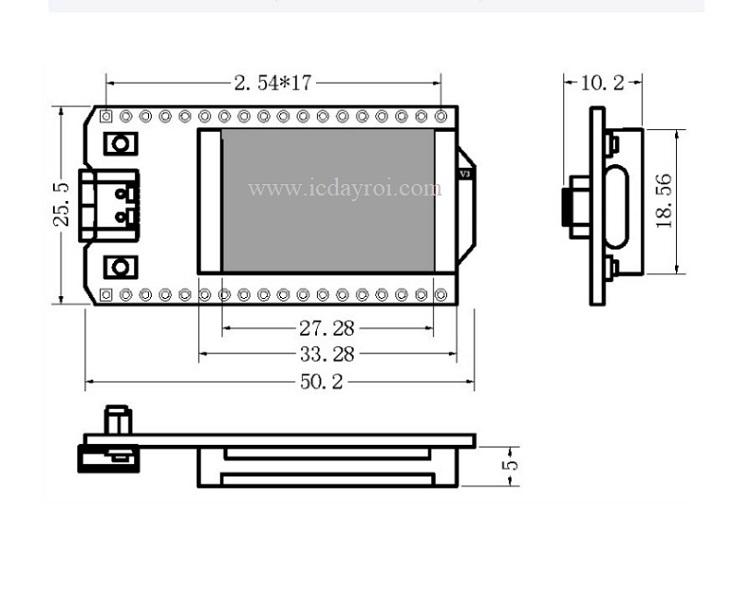

- - Dimensions: 50.2 * 25.5* 10.2 mm
