Module Ethernet LAN8720
78.000₫
Còn hàng
Mô tả :

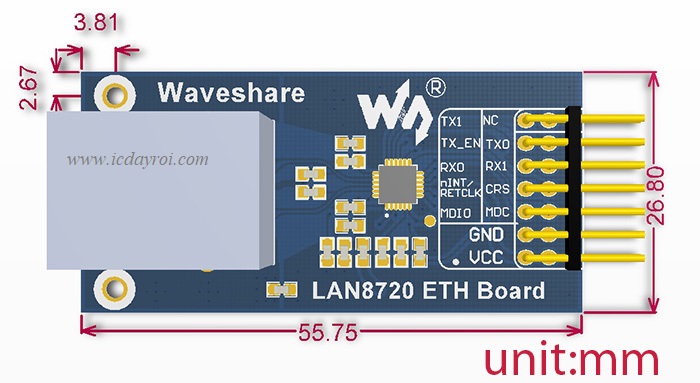

Ethernet module, 10/100 Ethernet Transceiver LAN8720 onboard
Features
High-Performance 10/100 Ethernet Physical Layer Transceiver (PHY)
Supports single 3.3V supply
Supports the reduced pin count RMII interface
Supports HP Auto-MDIX
Onboard chip package: 24-pin QFN (4x4 mm) Lead-Free RoHS Compliant package
Flexible Power Management Architecture
Integrated 1.2V regulator
I/O voltage...
Ethernet module, 10/100 Ethernet Transceiver LAN8720 onboard
Features
- High-Performance 10/100 Ethernet Physical Layer Transceiver (PHY)
- Supports single 3.3V supply
- Supports the reduced pin count RMII interface
- Supports HP Auto-MDIX
- Onboard chip package: 24-pin QFN (4x4 mm) Lead-Free RoHS Compliant package
- Flexible Power Management Architecture
- Integrated 1.2V regulator
- I/O voltage range: +1.6V to +3.6V
Applications:
- Embedded web server
Datasheet, layout:
- Embedded web server
Download:
- Source Code (File)
- Datasheet
