Máy hiện sóng oscilloscope tablet FNIRSI-1013D 100Mhz 2 kênh màn hình cảm ứng


Hết hàng

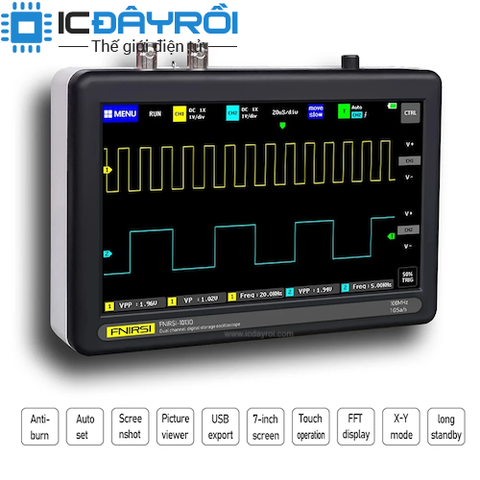

FNIRSI-1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by FNIRSI for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1GSa / s and an analog bandwidth of 100MHz * 2 . With complete trigger function (single / normal / automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V.



  • 1:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage
  • 2:100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz,10X = 100MHz)
  • 3:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
  • 4:Capacitive touch screen, the same as the touch mode of modern mobile, is not a resistive touch screen with ancient nail operation
  • 5:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V,100X can measure 0 ~ 4000V
  • 6:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period
  • 7:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage
  • 8:Complete triggering function (single, normal, automatic)
  • 9:At any time, the waveform display (suspend function) is frozen
  • 10:Equipped with high efficiency One-button AUTO
  • 11:One-button waveform storage and screenshot
  • 12:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
  • 13:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
  • 14:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
  • 15:Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
  • 16:FFT display function, can analyze the spectral characteristics of the signal
  • 17:Built in 6000mAh rechargeable lithium battery,Fully charged for 4 hours of continuous use at the highest screen brightness
  • 18:Memory compression technology, waveform refresh screen does not flicker
  • 19:Screen brightness adjustment
  • 20:Background grid brightness adjustment
  • 21:Ultra thin, easy to carry
  • Analog bandwidth: 100MHz * 2
  • Number of channels: 2 channels
  • Maximum real time sampling rate: 1GSa/s
  • Vertical sensitivity: 50 mV/div ~ 500 V/div
  • Horizontal time base range: 50S/div ~ 10nS/div
  • Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
  • Storage depth: 240Kbit
  • Input resistance: 1M
  • ADC precision: 8bits
  • Coupling mode: AC/DC
  • Trigger mode: Single, Normal, Auto
  • Trigger edge: Rising edge/Falling edge
  • External trigger voltage 0 – 40 V
  • Display: 7 inch - 800*480
  • Operating: Capacitive touch screen + gesture
  • Extension ports:USB picture export
  • Power supply: 6000 mAh lithium battery
  • Size: 184mm x 124mm x 50mm
  • Total weight: 650g

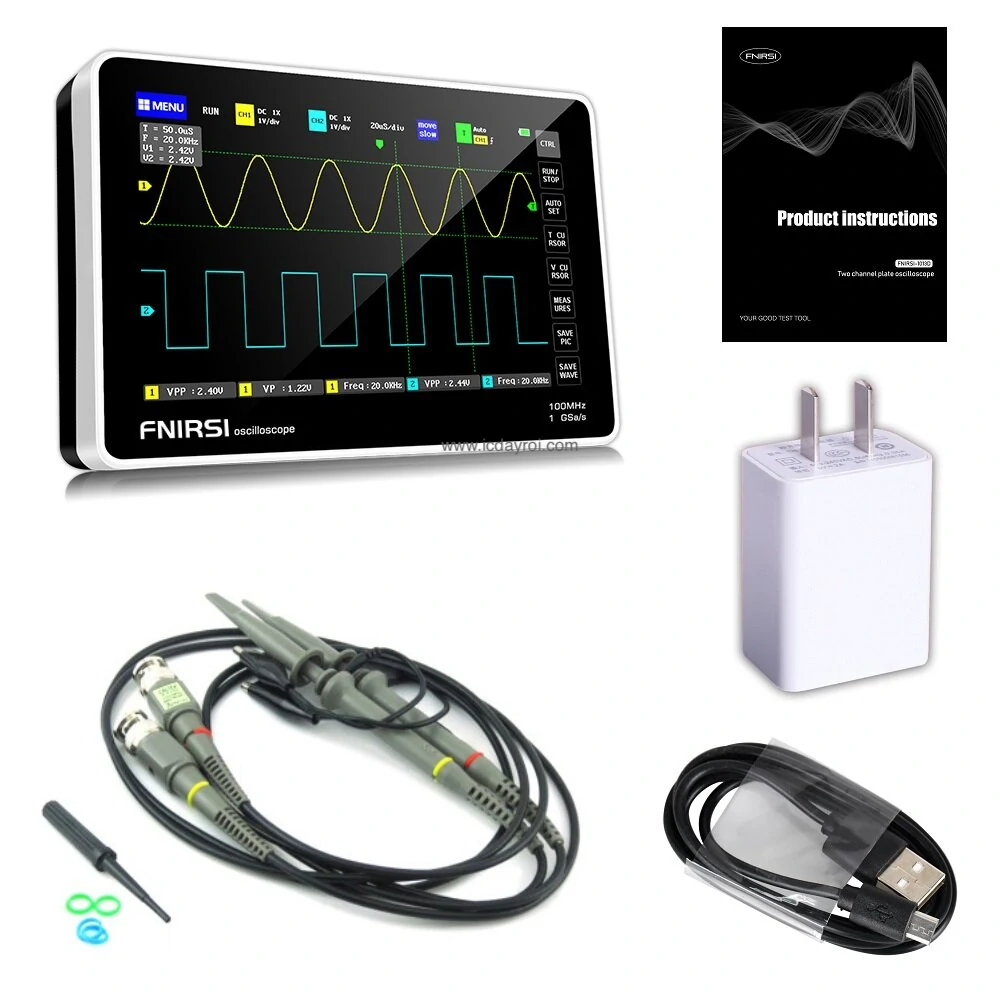

Package Includes:
  • 1 x FNIRSI-1013D Oscilloscope
  • 2 x Matching 100MHz Probe(1X and 10X)
  • 1 x 5V/2A Charger(Include USB data line)
  • 1 x User Manual (English)
