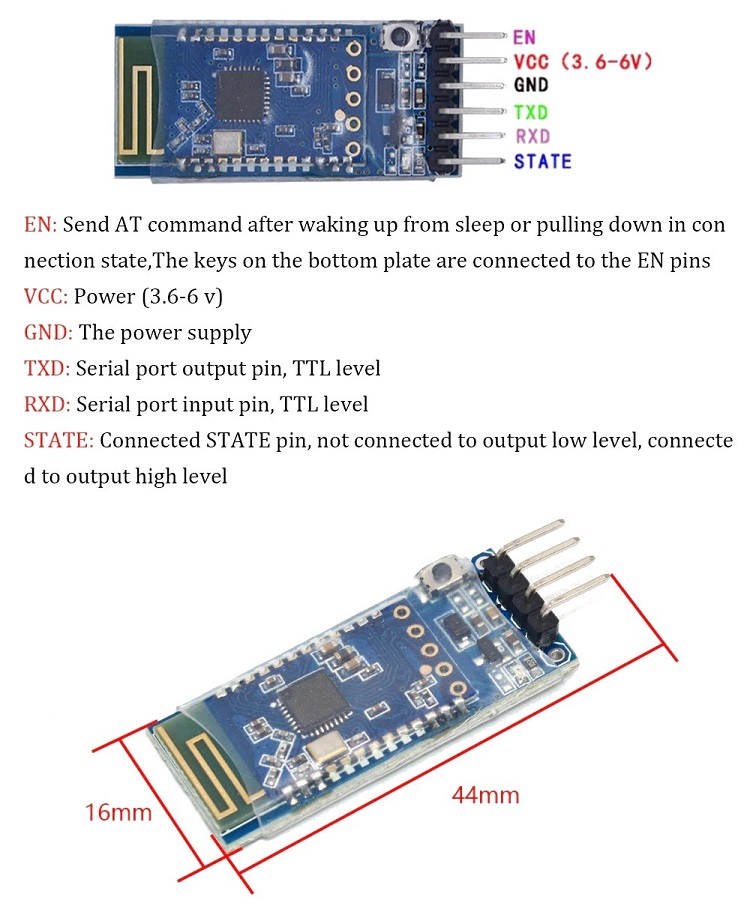

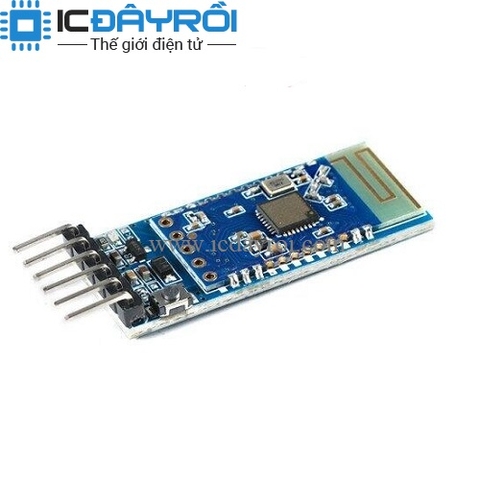

Mạch thu phát Bluetooth 5.0 BLE JDY-24M
65.000₫
The maximum number of MESH network supports 65280 device network. Multi-hop wireless anti-collision technology is adopted. The network communication speed supports 50ms to send 16 byte data. The single module supports routing node and terminal node. The routing node supports data relay (low power consumption is not supported). The terminal node supports low power consumption (automatic sleep after key wake-up and data sending), JDY-24M network generally only needs to be configured with network NETID and short address, and the module will automatically network. When the network module communicates with APP, it is equivalent to transparent transmission, which greatly convenient for users to developAPP compatible with old products APP.
Features:
- - Support data transparent transmission with mobile phone (IOS, Android)APP (working current about 1mA)
- - Support module and module master slave high speed transparent transmission
- - Support lBeacon function (ultra-low power consumption)
- - Support lBeaconprobe function
- - Support BLE Bluetooth probe function
- - Multi-connected slave mode is supported. Multi-connected slave can connect with multiple mobile phones and transparent transmission at the same time.
- - Support Bluetooth MESH network (Network serial port data communication, output IO control, input key control)
- - MESH network data sending supports response and no response communication
- - Network remote control
- - Multi-connected master-slave mixed connection (the master is connected to the slave at the same time, and the slave is connected to the mobile phone at the same time, and work at the same time)
Applications:
- - Bluetooth network LED (one-to-many, many-to-one, mobile phone or remote controller control, many-to-many control)
- - Bluetooth network serial port communication application (one-to-many, many-to-one, mobile phone or remote controller control, many-to-many control)
- - Network panel switch, 86 switch (ultra-low power consumption)
- - Network smart home application (switch, relay, curtain) control
- - Network sensor application
- - WIFI network gateway application
- - ZlGbee network application
- - Mobile network control application
- - Key label
Technical specifications:
| Type | Specification parameter | |
| Working voltage | 3.6 ~ 6Vdc | |
| Working temperature | -40 ~ 85°C | |
| Maximum transmitting power | +4dbm | |
| Communicalion distance | 80m | |
| Bluetooth version | BLH5.0 | |
| Antenna | PCB board antenna | |
| Antenna gain | -3dbi | |
| Receiving sensitivity | -96dbm | |
| SMT welding temperature | <260*C | |
| Communication interface | UART | |
| Module size | 27mm * 12.88mm * 1.6mm | |
| Communication speed between slave and APP | 8k(byte/s) | |
| MESH communication speed | 50ms send 16bvte | |
| Average current | Wake up (transparent transmission) current in non MESH mode | About 1mA |
| Light sleep of slave with broadcast in non MESH mode | Within 200uA (related to broadcasting interval) | |
| Wake up communication current in MESH mode | About 4mA | |
| Sleep current in MESH mode | 3uA | |
| Deep Sleep Mode | 3uA | |
