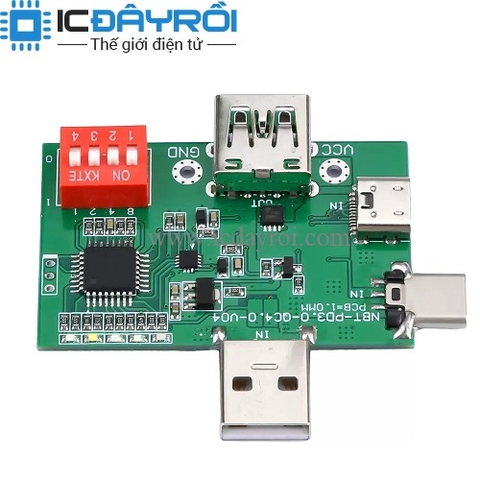

Mạch kích hoạt sạc nhanh 5-20VPD/QC3.0 2.0/PPS
209.000₫
Mô tả :
Features:
1.This module supports multiple protocols, including PD3.0, PD2.0, QC3.0, QC2.0/PPS protocols.
2.The voltage can be freely adjusted through a dial switch, with 5V/9V/12V/15/20V adjustable.
3.Multiple input methods for easy testing and use.
4.With a large load capacity, it can carry a maximum load of 5A (the E-Marker needs to be equipped with its own cable, which is not directly supported by the male end).
5.Easy to use, the dial switch is set to the voltage you want to age according to the fast charging protocol of your own charger. You don't need to turn it on or off again the next time you use it. Powering on is the voltage you want to age, saving time.
Parameter:
Multi port input: supports C male input, C female input, and A male input
USB output: supports high current output and can be connected to electronic loads or cement resistors
Protocol: Supports QC2.0, QC3.0, and PD2 0. PD3. 0. PPS voltage reading
Voltage: Supports 5V/9V/12V/15/20V voltage
Current: 5A (maximum)
Power: Supports 100W (requires an emark charging cable (as specified in the protocol)
Size: 50mm * 33mm (excluding interface)
Instructions for use:
1. The unplug switch fixes the number of voltage groups after power on.
2. The indicator light corresponds to the code removal switch and turns on the corresponding indicator light when unplugged to binary 1.
3. The indicator lights are divided into different colors and corresponding voltages.
