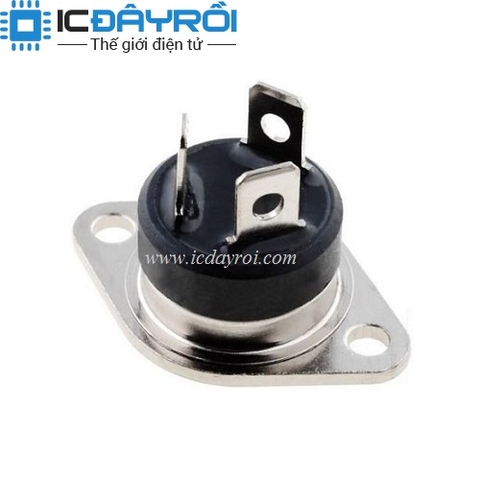

BTA40-700B

38.000₫

Còn hàng

BTA40-700B BTA40700B 40A 700V

Datasheets BT(A,B)4x
Triac Type Standard
Voltage - Off State 700V
Current - On State (It (RMS)) (Max) 40A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 420A
Current - Gate Trigger (Igt) (Max) 50mA
Current - Hold (Ih) (Max) 80mA
Configuration Single
Mounting Type Chassis Mount
Package / Case RD91-3 (Insulated)
Supplier Device Package RD91
