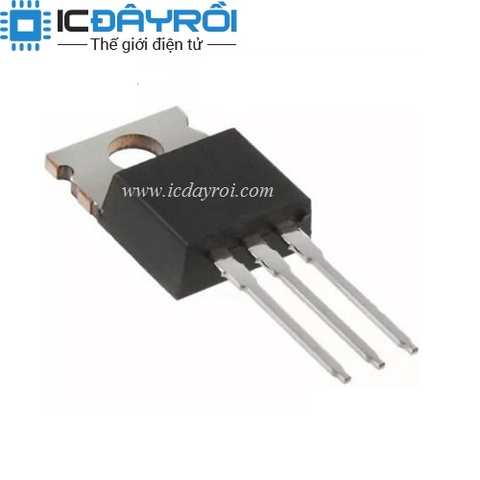

BT140-600 TRIAC 25A 600V TO220
10.000₫
Còn hàng
Mô tả :
BTA140-600 BTA140 25A 600V
Voltage - Off State
600V
Current - On State (It (RMS)) (Max)
25A
Voltage - Gate Trigger (Vgt) (Max)
1V
Current - Non Rep. Surge 50, 60Hz (Itsm)
190A, 209A
Current...
BTA140-600 BTA140 25A 600V
| Voltage - Off State | 600V | |
|---|---|---|
| Current - On State (It (RMS)) (Max) | 25A | |
| Voltage - Gate Trigger (Vgt) (Max) | 1V | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 190A, 209A | |
| Current - Gate Trigger (Igt) (Max) | 70mA | |
| Current - Hold (Ih) (Max) | 60mA | |
| Configuration | Single | |
| Operating Temperature | 125°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220AB |
