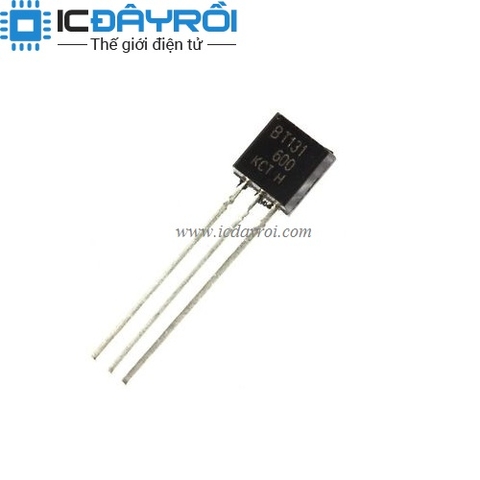

BT131-600 TRIAC TO-92 1A/600V
900₫
Còn hàng
Mô tả :
TRIAC SENS GATE 600V 1A TO92-3
Categories
Discrete Semiconductor Products
Thyristors - TRIACs
Manufacturer
WeEn Semiconductors
Series
-
Packaging
Cut Tape (CT)
Part Status
Discontinued at Digi-Key
Triac Type
Logic - Sensitive Gate
Voltage - Off State
600V
Current - On State (It (RMS)) (Max)
1A
Voltage - Gate Trigger (Vgt) (Max)
1.5V
Current - Non Rep. Surge 50, 60Hz...
TRIAC SENS GATE 600V 1A TO92-3
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Thyristors - TRIACs | ||
| Manufacturer | WeEn Semiconductors | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued at Digi-Key | |
| Triac Type | Logic - Sensitive Gate | |
| Voltage - Off State | 600V | |
| Current - On State (It (RMS)) (Max) | 1A | |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 12.5A, 13.8A | |
| Current - Gate Trigger (Igt) (Max) | 3mA | |
| Current - Hold (Ih) (Max) | 5mA | |
| Configuration | Single | |
| Operating Temperature | 125°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) | |
| Supplier Device Package | TO-92-3 | |
| Base Part Number | BT131 |
