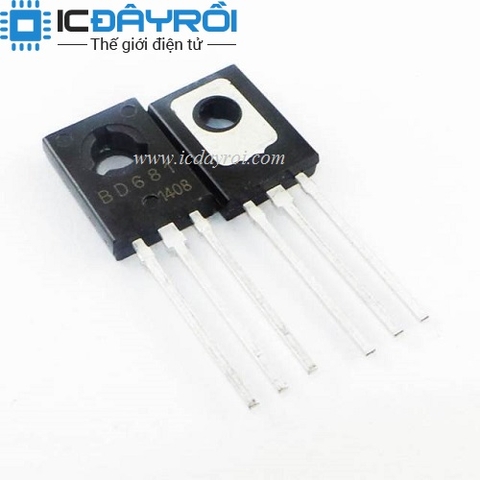

BD681 100V/4A/40W NPN TO-126
2.500₫
Còn hàng
Mô tả :
Transistor BD681 100V/4A/40W NPN TO-126.
Transistor Type
NPN - Darlington
Current - Collector (Ic) (Max)
4A
Voltage - Collector Emitter Breakdown (Max)
100V
Vce Saturation (Max) @ Ib, Ic
2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max)
500µA
DC Current Gain (hFE) (Min) @ Ic, Vce
750 @ 1.5A, 3V
Power -...
Transistor BD681 100V/4A/40W NPN TO-126.
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 4A |
| Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 30mA, 1.5A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 1.5A, 3V |
| Power - Max | 40W |
| Frequency - Transition | - |
| Mounting Type | Through Hole |
| Package / Case | TO-225AA, TO-126-3 |
| Supplier Device Package | SOT-32-3 |
