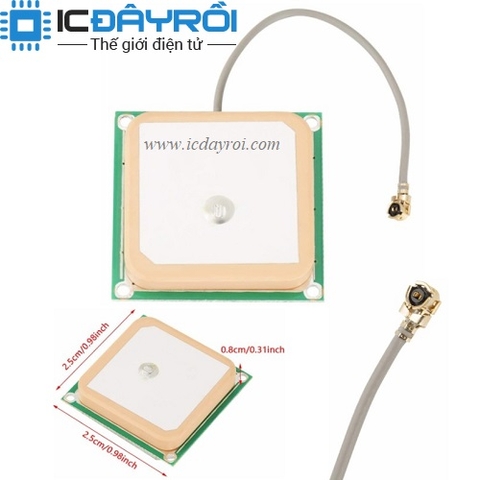

Anten GPS 28db 5cm
32.000₫
Còn hàng
Mô tả :
Description
Center frequency: 1575MHZ
Voltage in Bobbi: 2:1
Bandwidth: + 30 MHz
Impedance: 50
Maximum gain: > Based on 3dBic 7 * 7cm
Gain range: > at -90 -4dBic degrees < 0 < +90
Antenna polarization: RHCP
Amplifier / filter
Amplifier gain: 32dB
Noise figure: 1.5dB
Filter out of band...
Description
Center frequency: 1575MHZ
Voltage in Bobbi: 2:1
Bandwidth: + 30 MHz
Impedance: 50
Maximum gain: > Based on 3dBic 7 * 7cm
Gain range: > at -90 -4dBic degrees < 0 < +90
Antenna polarization: RHCP
Amplifier / filter
Amplifier gain: 32dB
Noise figure: 1.5dB
Filter out of band attenuation: Min f0+/-20MHz 7dB;
Min f0+/-50MHz 20dB;
Min f0+/-100MHz 30dB
Output voltage in Bobbi: < 2
DC voltage : 3V---5V DC
Power consumption: 10mA
Structure
Weight: 7 (g)
Exterior dimension: 28X28X6.5mm
Cable length: 5cm
Connecting head model: IPEX
Line color: Black
