2SD1724 NPN 3A 100V

7.500₫

Hết hàng

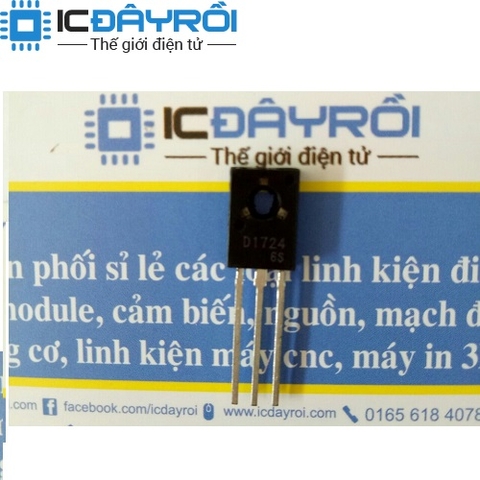

2SD1724 D1724 TO126 NPN Transistor 3A 100V

  • Type Designator: 2SD1724
  • Material of Transistor: Si
  • Polarity: NPN
  • Maximum Collector Power Dissipation (Pc): 20 W
  • Maximum Collector-Base Voltage |Vcb|: 120 V
  • Maximum Collector-Emitter Voltage |Vce|: 100 V
  • Maximum Emitter-Base Voltage |Veb|: 6 V
  • Maximum Collector Current |Ic max|: 3 A
  • Max. Operating Junction Temperature (Tj): 150 °C
  • Transition Frequency (ft): 180 MHz
  • Collector Capacitance (Cc): 25 pF
  • Forward Current Transfer Ratio (hFE), MIN: 70
  • Noise Figure, dB: -
  • Package: TO247
