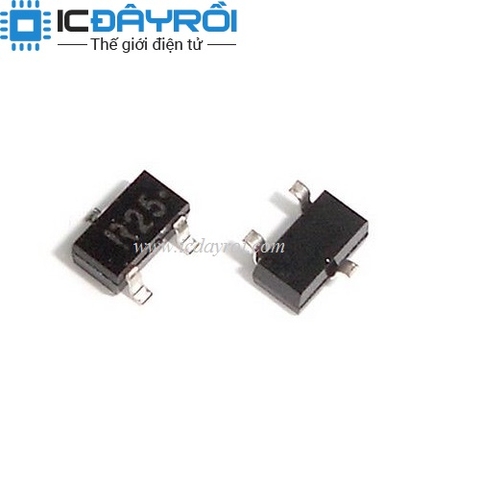

2SC3356-T1B 12V NPN SOT23
700₫
Còn hàng
Mô tả :
2SC3356 SOT-23 package NPN Transistor Microware low noise amplifier
DESCRIPTION:
The 2SC3356 is an NPN silicon epitaxial transistor designed for low noise amplifier at VHF, UHF and CATV band.
It has dynamic range and good current characteristic.
DataSheet
Transistor Type
NPN
Voltage - Collector Emitter Breakdown (Max)
12V
Frequency -...
2SC3356 SOT-23 package NPN Transistor Microware low noise amplifier
DESCRIPTION:
The 2SC3356 is an NPN silicon epitaxial transistor designed for low noise amplifier at VHF, UHF and CATV band.
It has dynamic range and good current characteristic.
DataSheet
| Transistor Type | NPN | |
|---|---|---|
| Voltage - Collector Emitter Breakdown (Max) | 12V | |
| Frequency - Transition | 7GHz | |
| Noise Figure (dB Typ @ f) | 1.1dB @ 1GHz | |
| Gain | 13dB | |
| Power - Max | 200mW | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 20mA, 10V | |
| Current - Collector (Ic) (Max) | 100mA | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23 |
