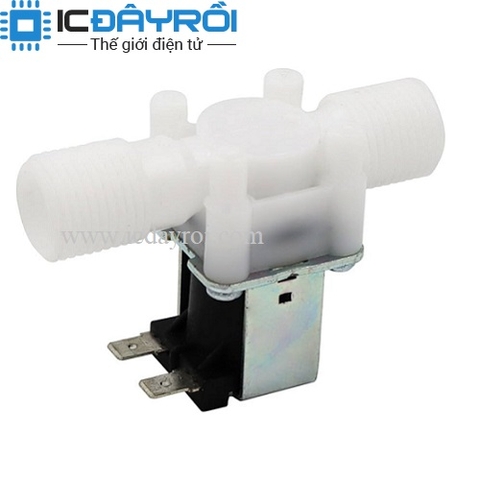

A solenoid valve is an electromechanically operated valve. The valve is controlled by an electric current through a solenoid: in the case of a two-port valve the flow is switched on or off; in the case of a three-port valve, the outflow is switched between the two outlet ports.

Inlet and outlet: hose barbs for 1/2" (outer diameter) hose

Pressure: 0.02- 0.8Mpa

Max fluid temperature: 100°C

Operation mode: normally closed

Valve type: diaphragm (operated by Servo)

Usage: water and low viscosity fluids

Product Dimension: 78mm x 60mm

The inner diameter: 13.5mm

Four external diameters of thread: 20mm A

solenoid valve is an electromechanically operated valve. The valve is controlled by an electric current through a solenoid: in the case of a two-port valve the flow is switched on or off; in the case of a three-port valve, the outflow is switched between the two outlet ports
