Servo Digital RC LD-27MG
425.000₫
Còn hàng
Mô tả :
Hiwonder LD-27MG is a full metal gear standard digital servo with 20kg large torque, using aluminum case for Robotic RC Car with control angle 270 degrees.
Feature
- 20kg large torque. Full metal gear. Improve servo’s accuracy and extend its service time
-...
Hiwonder LD-27MG is a full metal gear standard digital servo with 20kg large torque, using aluminum case for Robotic RC Car with control angle 270 degrees.
Feature
- - 20kg large torque. Full metal gear. Improve servo’s accuracy and extend its service time
- - Aluminum Case enhances heat dissipation and ensures servo motor work properly
- - Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots

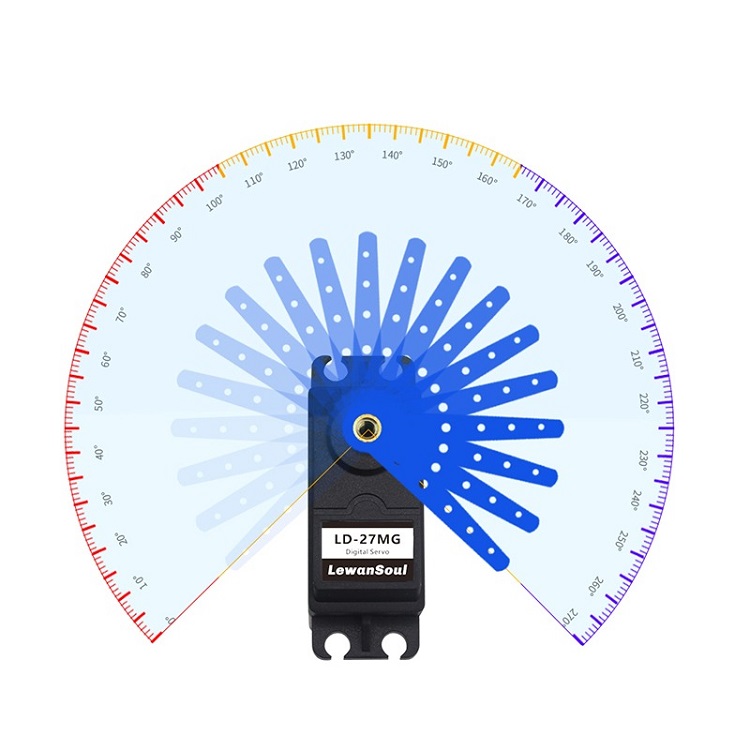

- - 270 degrees rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control. It can rotate within 360 degrees when power off
Specification
| Weight | 65g(2.32OZ) |

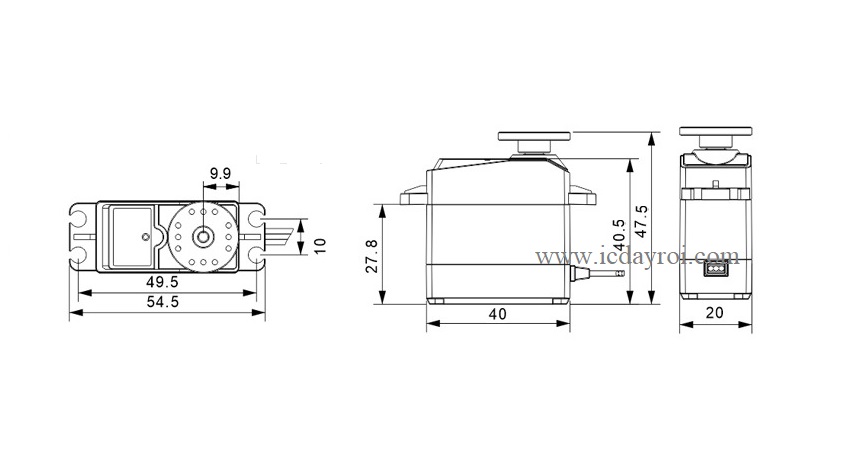

| Dimension | 54.5mm*20mm*47.5mm (2.14inch*0.78inch*1.87inch) |
| Speed | 0.16sec/60°(7.4V) |
| Torque | 20 kg·cm (277.6 oz·in) @7.4V |
| Working Voltage | 6-7.4V |
| Min Working Current | 1A |
| No-Load Current | 100mA |
| Spline | 25T(6mm in diameter) |
| Servo Wire | 30cm(11.8inch) in length |
| Control Method | PWM |
| Pulse Width | 500~2500us, to (0~270deg) |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: +; black wire: GND; white wire: PWM/signal |
