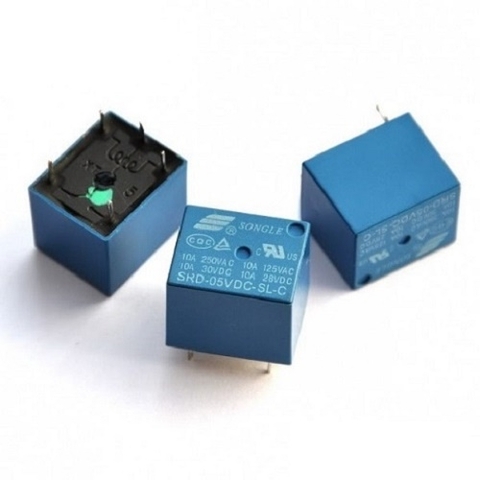

Relay SRD-5VDC-SL-C
Relay
6.000₫
Còn hàng
Mô tả :
Relay 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC
SRD-05VDC-SL-C Relay 5V DC 10A 1 FORM C
Feature:
- Selection of plastic material for high temperature and better chemical solution performance
- Sealed types available
- Simple relay magnetic circuit to meet low cost of mass production
Specification:
- - Model: SRD-5VDC-SL-C
- - Coil voltage: DC 5V
- - Coil resistance: 70Ω ~ 80Ω
- - Contact resistance: 100Ω Max
- - Operation time: 10msec Max
- - Release time: 5msec Max
- - Ambient temperature: -25°C to 70°C
- - Operating humidity: 45 to 85%RH
- - Operating current: 43mA ~ 46mA
- - Release current: 15mA ~ 18mA
- - Pin: 5Pin
- - Insulation resistance: ≥100M (Ohm)
- - Dielectric strength:
- - Between coil & contacts: AC 1500V 50HZ ~ 60HZ/min
- - Between contacts: AC 1000V 50HZ ~ 60HZ/min
- - Rated load:: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC
- - Size: 1.8 x 1.5 x 1.6cm (L x W x H)
Application:
- - Domestic appliance, office machine, audio, equipment, automobile, etc.
Document:
DataSheet
