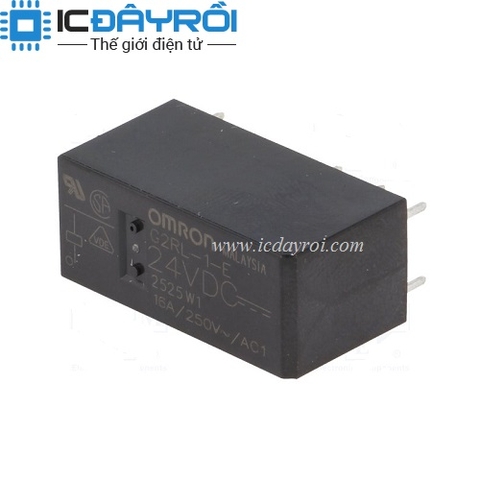

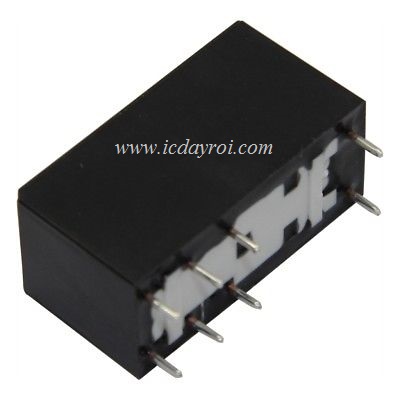

Relay omron G2RL-1-E-24VDC
30.000₫
Còn hàng
Mô tả :
Relay G2RL-1-E-24VDC kích thước 29 x 12.7 x 15.7mm
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
16A
Switching Voltage
440VAC, 300VDC - Max
Turn On Voltage (Max)
16.8 VDC
Turn Off Voltage (Min)
2.4 VDC
Operate Time
15ms
Release Time
5ms
Features
Insulation - Class F, Sealed - Flux Protection
Mounting Type
Through Hole
Termination Style
PC...
Relay G2RL-1-E-24VDC kích thước 29 x 12.7 x 15.7mm
| Coil Voltage | 24VDC | |
|---|---|---|
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 16A | |
| Switching Voltage | 440VAC, 300VDC - Max | |
| Turn On Voltage (Max) | 16.8 VDC | |
| Turn Off Voltage (Min) | 2.4 VDC | |
| Operate Time | 15ms | |
| Release Time | 5ms | |
| Features | Insulation - Class F, Sealed - Flux Protection | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Operating Temperature | -40°C ~ 85°C | |
| Contact Material | Silver Alloy, Cadmium Free | |
| Coil Power | 400 mW | |
| Coil Resistance | 1.44 kOhms |
