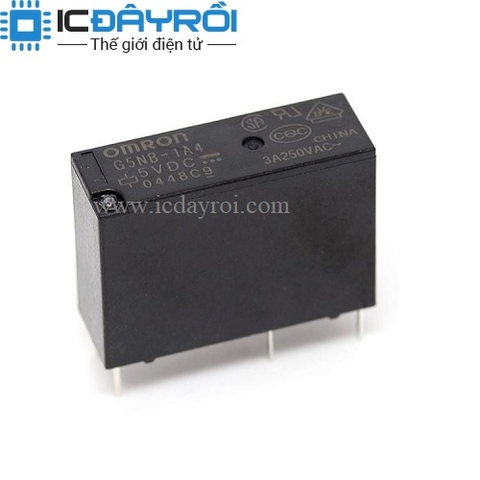

Relay G5NB-1A-E-5VDC 5V 5A 4 chân
9.000₫
Còn hàng
Mô tả :
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Coil Voltage: 5 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Current Rating: 5 A
Contact Termination: Solder Pin
Mounting Style:...
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Coil Voltage: 5 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Current Rating: 5 A
Contact Termination: Solder Pin
Mounting Style: Through Hole
Switching Voltage: 250 VAC, 30 VDC
Coil Termination: Solder Pin
Coil Type: Non-Latching
Coil Resistance: 125 Ohms
Coil Current: 40 mA
Contact Material: Silver Alloy (Ag)
Series: G5NB

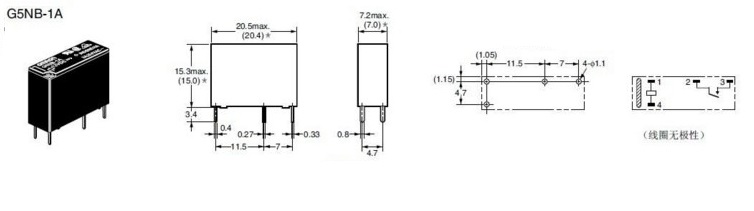

Length: 20.5 mm
Width: 7.2 mm
Height: 15.3 mm
Brand: Omron Electronics
Contact Form: SPST (1 Form A)
Contact Rating: 5 A
Maximum Switching Current: 3 A
