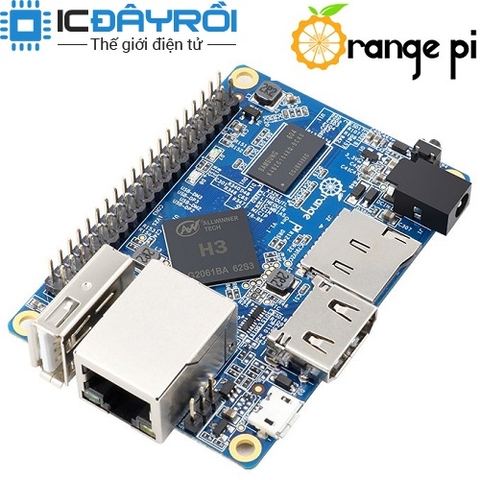

Máy tính nhúng Orange Pi One

390.000₫

Hết hàng

Máy tính nhúng Orange Pi One là phiên bản máy tính nhúng mini giá rẻ từ orangepi.org, máy có thể chạy được các hệ điều hành: Android 4.4, Ubuntu, Debian, hệ điều hành của Rasberry Pi, và banana pi.

Máy tính nhúng Orange Pi One sử dụng CPU AllWinner H3 SoC, 512MB DDR3 SDRAM, tích hợp GPIO, cổng USB, Ethernet, HDMI, hệ điều hành load từ thẻ nhớ,...

Máy tính nhúng Orange Pi One được sử dụng cho nhiều ứng dụng khác nhau, đặc biệt là các ứng dụng cần đến tác vụ xử lý nhanh hay chạy trên nền hệ điều hành Linux, Android.

Bạn có thể tự tạo một các ứng dụng cho riêng mình như: một máy tính, Máy chủ không dây, Máy chơi game, nghe nhac,...

Với orange pi one bạn có thể tha hồ sáng tạo, tiếp cận công nghệ.

Hardware specification

CPU

H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU

·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM)

512MB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / MMC card slot

Onboard Network

10/100M Ethernet RJ45

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Supports simultaneous output of HDMI

Power Source

DC input can supply power, but USB OTG input don’t supply power

USB 2.0 Ports

Only One USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW4)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+



LED

Power led & Status led

Key

POWER

Supported OS

Android Ubuntu, Debian, Rasberry Pi Image

Interface definition

Product size

69 mm × 48mm

Weight

36g

Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited
