ADS1210P
250.000₫
Còn hàng

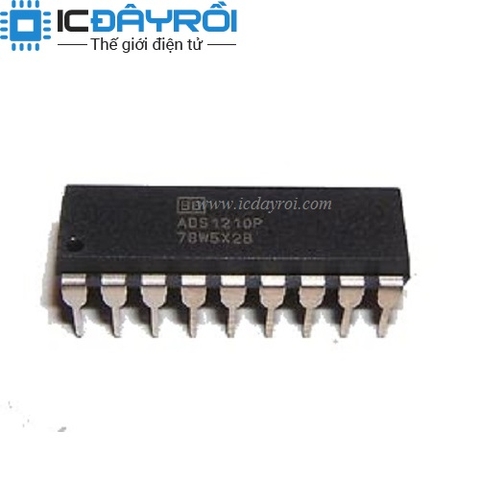

ADS1210P ADC (A/D Converters) 24-Bit Analog-to-Digital Converter
Datasheet
| Resolution(Bits) | 24 |
| Sample Rate (max) | 16kSPS |
| Architecture | Delta-Sigma |
| Power Consumption(Typ)(mW) | 27.5 |
| DNL(Max)(+/-LSB) | 1 |
| INL(Max)(+/-LSB) | 0.0015% |
| No Missing Codes(Bits) | 24 |
| ENOB(Bits) | 23 |
| No. of Supplies | 1 |
| Analog Voltage AV/DD(Min)(V) | 4.75 |
| Analog Voltage AV/DD(Max)(V) | 5.25 |
| Logic Voltage DV/DD(Min)(V) | 4.75 |
| Logic Voltage DV/DD(Max)(V) | 5.25 |
| Input Configuration Range | 2Vref/PGA (1-16) |
| Reference Mode | Int |
| Pin/Package | 18PDIP |
| # Input Channels | 1 |
