AUIRGP50B60PD1

70.000₫

Còn hàng

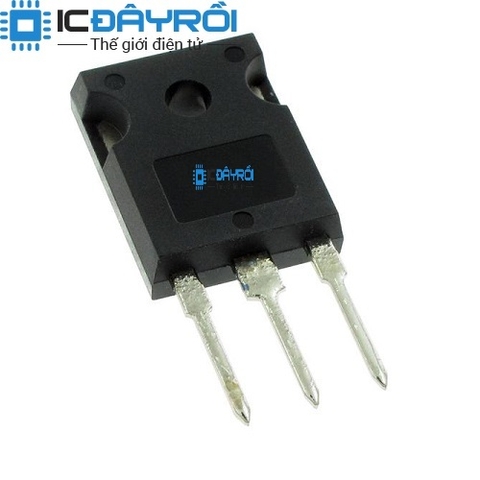

AUIRGP50B60PD1 IGBT, 75 A 600 V, 3-Pin TO-247AC



  Maximum Continuous Collector Current 75 A
Maximum Collector Emitter Voltage 600 V
Maximum Gate Emitter Voltage ±20V
Maximum Power Dissipation 390 W
Package Type TO-247AC
Mounting Type Through Hole
Channel Type N
Pin Count 3
Switching Speed 150kHz
Transistor Configuration Single
Length 15.87mm
Width 5.31mm
Height 20.7mm
Dimensions 15.87 x 5.31 x 20.7mm
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +150 °C
